Industrial Pressure Gauge

Industrial Pressure Gauge

Product Details:

  • Application Industrial
  • Material SS
  • Size Customized
  • Supply Ability : Per Month
X

Price And Quantity

  • 1 Unit

Product Specifications

  • Customized
  • Industrial
  • SS

Trade Information

  • Cheque, Cash in Advance (CID)
  • Per Month
  • Days
  • All India

Product Description

Payment terms - Online payment accepted.

MOC: Complete SS

Scale Range: 0.....1....Upto1600 Kg/Cm2

Connection: Bottom Connection

Dial Size: 100 MM,150 MM,250 MM

TECHNICAL DATA

Standard measurement ranges:

  • 0...1; 0...1.6; 0...2.5; 0...4; 0...6; 0...10; 0...16 bar;
  • 0...25; 0...40; 0...60; 0...100; 0...160; 0...250; 0...400 bar;
  • -1...0; -1...0.6; -1...1.5; -1...5; -1...9; -1...15 bar;
  • Accuracy: 1%
  • Diameter of the casing: Ø100
  • Process connection: G1/2” or M20x1,.5
  • Connection outlet: radial (special – back version)
  • Operating temperature range; -40°C ÷ 90°C (-20°C ÷ 65°C- filling fluid: glycerine)
  • Medium temperature range: up to 200°C (up to 90°C- filling fluid: glycerine)

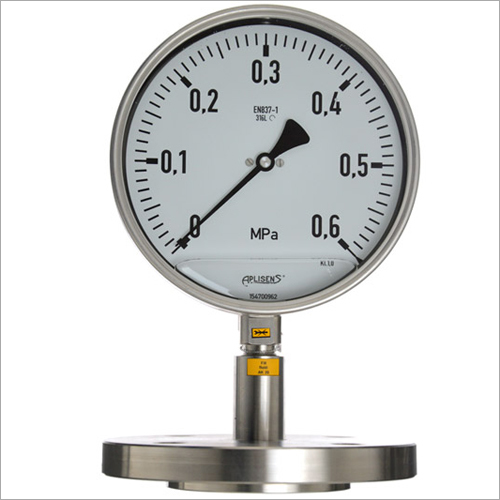

  • Medium temperature range for manometer-diaphragm seal unit dependson the diaphragm seal and may vary from :  -60°C ÷ 315°C
  • Casing material:  0H18N9 (304ss)
  • Process connection and measuring element material:  H17N13M2T (316Ti)
  • Casing protection rating:  IP65
